ROCKSHARP CNC2-5+1
5 Axis Bridge Cutting Machine
This stone processing machine integrates saw blade cutting, drilling, and other processing functions, allowing different modes to be switched flexibly according to production requirements. It helps improve overall production efficiency, optimize the workflow, increase material utilization, and reduce processing costs. The machine is suitable for home decoration, kitchen and bathroom countertops, vanity tops, furniture tabletops, feature walls, engineered stone panels, and custom-shaped stone products. Its cutting head supports ±185° rotation and 0–90° tilting, enabling vertical cutting in multiple directions as well as bevel cutting at different angles for both standard and complex stone processing applications.
Processing Capabilities
Our bridge cutting machines support various stone processing methods, including cutting, chamfering, grooving, arc cutting, and surface shaping, delivering precise results for customized stone applications.
Product Advantages
Smart Features & High-Performance Design
Engineered for precision cutting with stable performance, clean edges, and intelligentDesigned for efficient stone fabrication, this machine integrates intelligent control, automatic positioning, powerful spindle technology, and precision transmission systems to achieve accurate cutting, milling, drilling, and customized processing with higher efficiency and material savings. control.
Multi-Function Processing
- Supports Ø350–Ø450mm saw blades with 90° rotating cutting head for cutting, drilling, milling, and grooving operations.
- Provides flexible solutions for customized stone fabrication.
Multi-Function Processing
- Advanced software with an intuitive interface, supporting CAD import, automatic programming, and intelligent nesting.
- Improves operation efficiency, processing accuracy, and material utilization.
Intelligent Positioning
- Integrated vacuum suction and industrial camera systems ensure stable slab fixing and accurate layout planning.
- Helps avoid defects, optimize cutting paths, and maximize material usage.

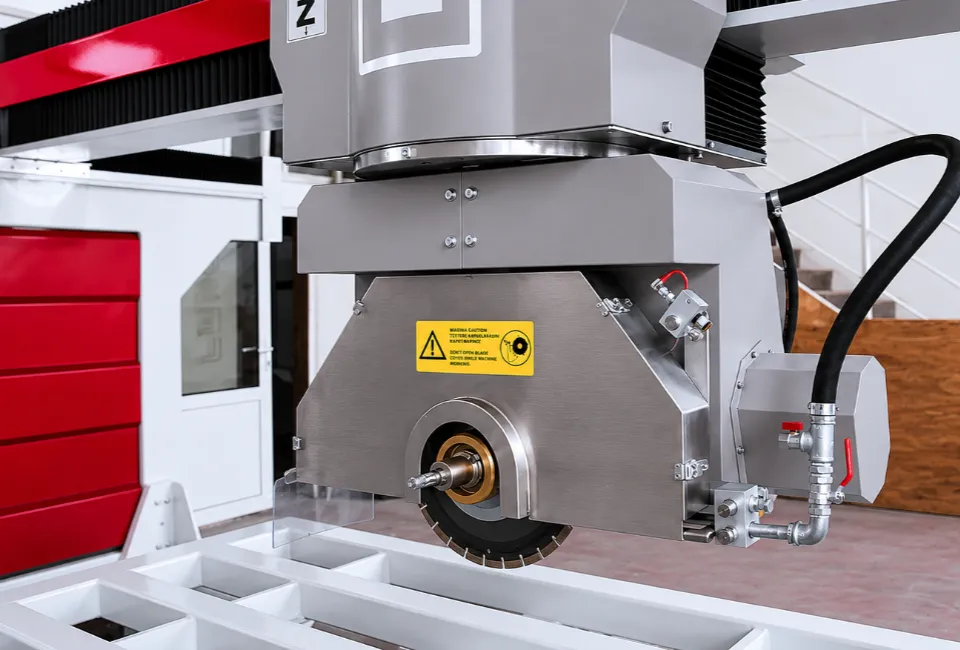

Powerful Spindle
- High-performance permanent magnet spindle delivers strong cutting power, stable operation, and energy efficiency.
- Suitable for marble, granite, quartz, porcelain slab, and other stone materials.
Precision Structure
- High-precision transmission system with servo control ensures accurate cutting and consistent quality.
- Automatic lubrication and strong machine structure provide long-term stability and reliable performance.
Technical data
Engineered for precision cutting with stable performance, clean edges, and intelligent control.
| Specification | Unit | HY/CNC2-5+1 | HY/CNC2-500C |
|---|---|---|---|
| Blade Diameter | mm | Ø350 - Ø450 | Ø350 - Ø450 |
| A-axis Rotation | deg | 0-90° | 0-90° |
| C-axis Rotation | deg | ±185° | ±185° |
| Max. Vertical Cutting Thickness | mm | 90 | 90 |
| X-axis Travel | mm | 3500 | 3500 |
| Y-axis Travel | mm | 2500 | 2500 |
| Z-axis Travel | mm | 350 | 350 |
| Working Table Size | mm | 2000×3400 | 2000×3400 |
| Machine Dimensions (L×W×H) | mm | 5900×3680×3200 | 5900×3680×3200 |
Application areas
Ideal for marble, granite, quartz, sintered stone, and terrazzo processing, delivering precise cutting for countertops, inlays, sink cutouts, and custom stone designs.
Countertop processing
From slab loading to final polishing and inspection, our complete countertop fabrication line solution integrates bridge saw cutting, waterjet precision cutting, CNC processing, edge polishing, and intelligent material handling into one efficient workflow.
Stone mosaic
Stone mosaic processing combines precision cutting and seamless assembly to create intricate patterns, decorative surfaces, and customized stone designs.
Sintered stone processing solutions
Advanced sintered stone processing solutions for cutting, polishing, drilling, and fabrication, ensuring precision, efficiency, and superior surface quality.
Sink Fabrication Solutions
Professional sink fabrication solutions for cutting, polishing, edge profiling, and assembly, delivering precise workmanship, enhanced efficiency, and high-quality results for stone countertop production.
